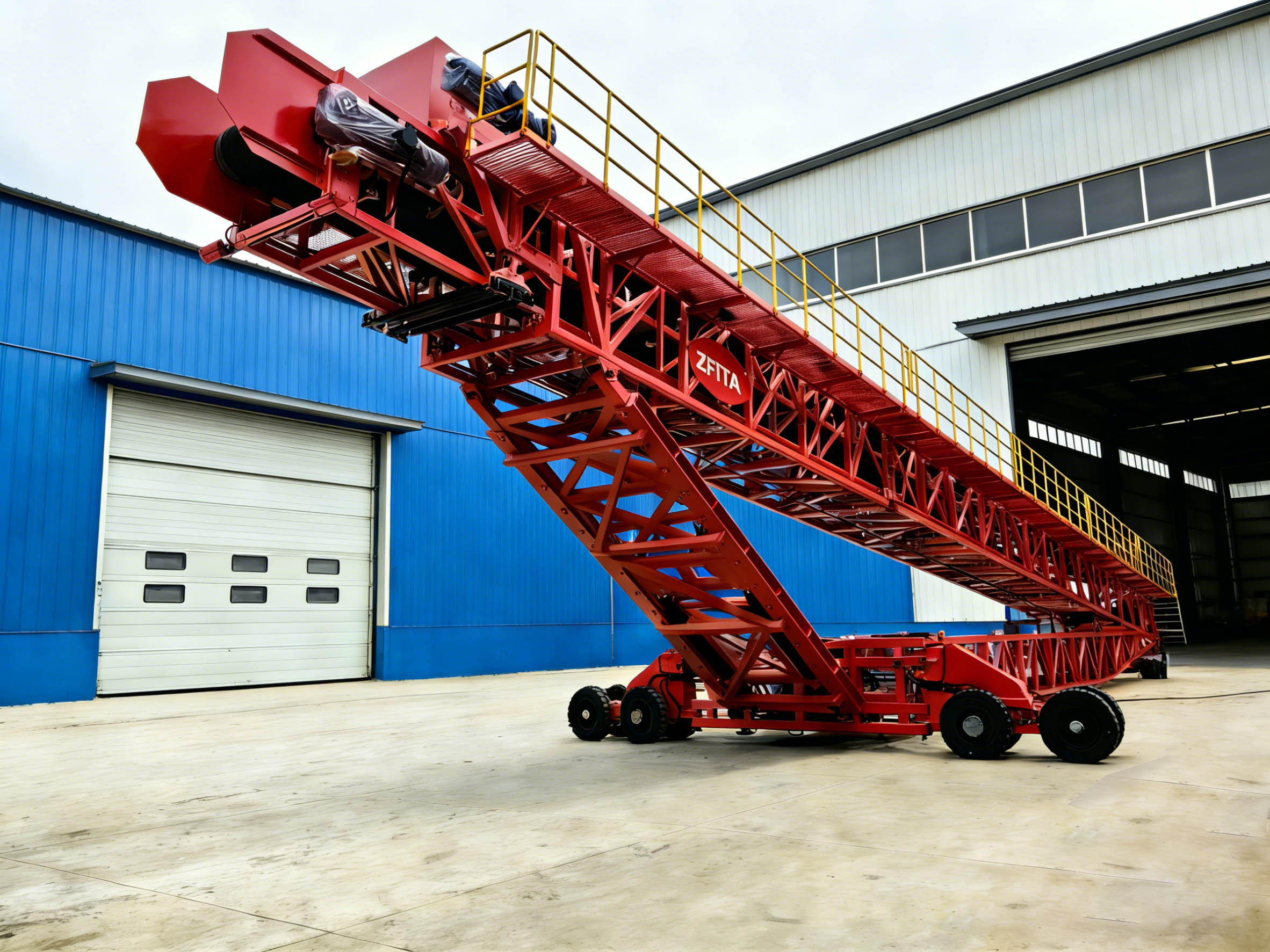

mobile stacker

mobile stacker can do radial stacking, boom telescopic, can move forward and backword, transfer bulk material in high efficiency.

There are four different type can be choose.

Fixed tail type,

Dead wheel type,

Crawler type(Self-propelled)

All wheel hydraulic type (Self-propelled)

PLC-automated stockpiling functionality can be provided as a configurable option.

Dusty resistance functionality can be provided as a configurable option.

360° rotation discharge chute functionality can be provided as a configurable option.

Marine climate painting can be provided as a configurable option.

Power Genset on board functionality can be provided as a configurable option.

Electrical-hydraulic power pack or Fully electrical power pack can be optional.

Belt width can be from 650mm, 800mm, 914mm, 1000mm, 1200mm, 1400mm, 1600mm to 2200mm as max.

Capacity from 200 tons per hour to 6500 tons per hour depend on different loose density of the material.
